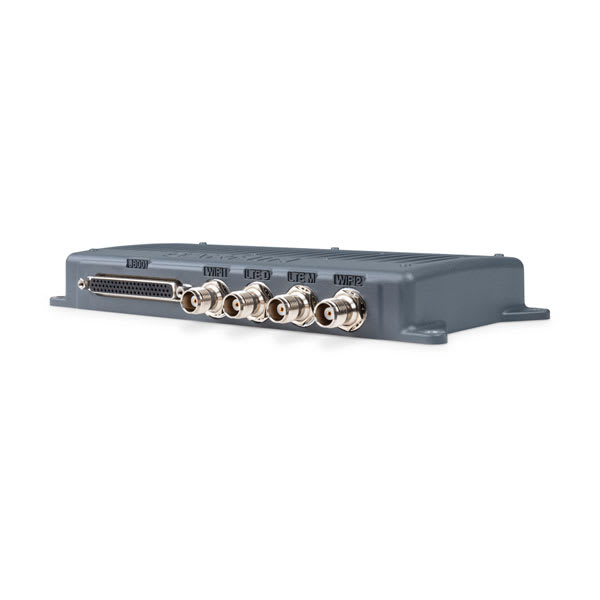

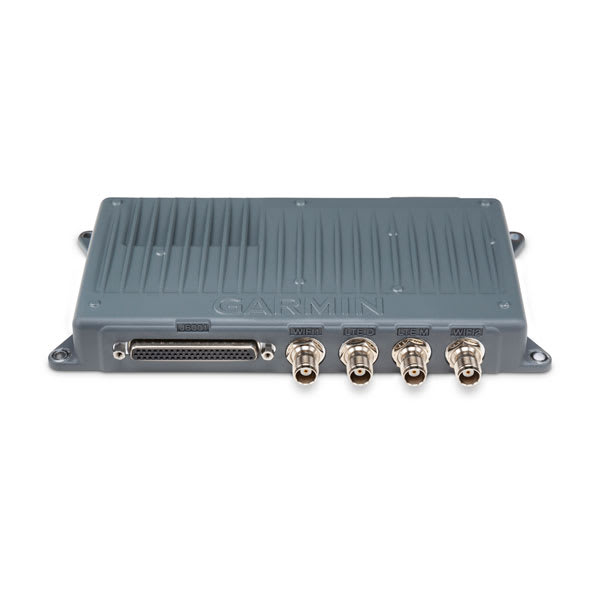

GDL 60 Datalink |
|
| Physical characteristics | |
|
Width |
8.72" |
| Height | 1.12" |
| Depth | 4.00" |
| Weight | 1.5 lbs |
| General Specifications | |
| Input voltage | 14/28Vdc |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Memory | 64 GB eMMC |
| Compliance | |
| Environmental compliance | RTCA DO-160F |
| Software compliance | RTCA DO-178B Level D (GDL 60 unit), Level E (cellular firmware) |
| TSO compliance | TSO-C109 |
| Cellular Specifications | |
| 4G LTE (CAT 4) with 3G Fallback | |
| Global Operation | Bands: LTE B1,2,3,4,5,7,8,12,18,19,20,25,26,28,38,39,40,41 |
| Transmit power | +25 dBm max |
| 3FF SIM Card (micro SIM) | |
| Wi-Fi Specifications | |
| Physical radios | 2 (one internal access point, one external client) |
| Class | 802.11 b/g/n |
| Frequency band | 2.4 GHz |
| Transmit power | +17 dBm / 50 mW max |
| BLUETOOTH Specifications | |
| BLUETOOTH standard | 4.2 |
| Frequency band | 2.4 GHz |
| Power class | 2 +4 dBm / 2.5 mW max |

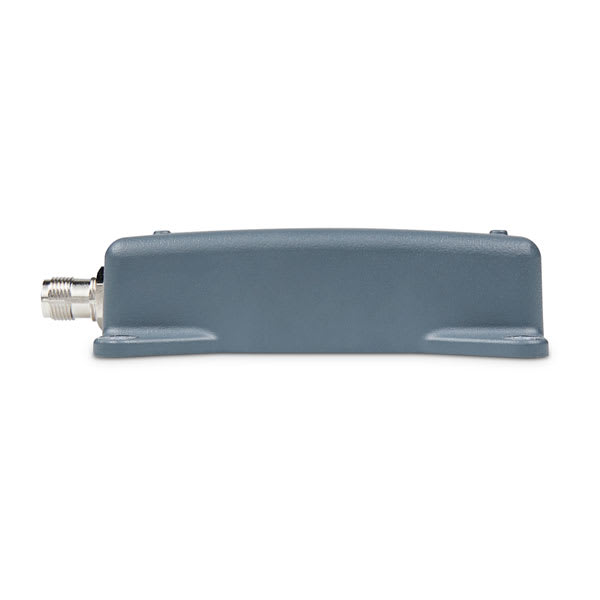

GA 60 LTE Antenna |
|
| Physical characteristics | |
|
Width |
6.39" |
| Height | 1.08" |
| Depth | 2.95" |
| Weight | 0.5 lb |
| General Specifications | |
| Nominal impedance | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation internal to an aircraft | |
| Cellular Antenna Specifications | |
| Supported radio | Cellular 4G LTE/3G |
| Type | Two element MIMO |
| Bandwidth | 700 MHz to 2700 MHz |
GA 61A LTE/Wi-Fi Combo Antenna |
|
| Physical characteristics | |
|
Width |
7.34" |
| Height | 3.20" |
| Depth | 2.34" |
| Weight | 0.8 lbs |
| General Specifications | |
| Nominal impendence | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -55C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation external to an aircraft | |
| Cellular Antenna Specifications | |
| Supported radio | Cellular 4G LTE/3G |
| Type | Two element MIMO |
| Bandwidth | 700 MHz to 2700 MHz |
| Wi-Fi Antenna Specifications | |
| Supported radio | 2.4 GHz Wi-Fi |
| Type | Single element monopole, omni-directional |
| Bandwidth | 2400 to 2500 MHz |
Wi-Fi Antenna |
|
| Physical characteristics | |
|
Width |
0.31" |
| Height | 1.08" |
| Depth | 0.69" |
| Weight | 0.075 lbs |
| General Specifications | |
| Nominal impedance | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation internal to an aircraft | |
| Wi-Fi Antenna Specifications | |
| Supported radio | 2.4 GHz Wi-Fi |
| Type | Two element monopole, omni-directional |
| Bandwidth | 2400 to 2500 MHz |
