General |
|
| Dimension | 15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm) |
|---|---|
| Weight |
3.49 lbs (1.583 kg) |
|
Water rating |
IPX7 |
| Display Type | None (external display) |
| Display Size | None (external display) |
| Display resolution | 1920 x 1080 1024 x 600 1280 x 800 1920 x 1200 3840 x 2160 Letterboxed |
Maps & Memory |
|
| Accepts Data Cards |
no (USB Card Reader required) |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | yes (with external GPS antenna) |
|---|---|
| GLONASS | yes (with external GPS antenna) |
| Galileo | yes (with external GPS antenna) |
| BeiDou | yes (with external GPS antenna) |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | yes (with external GPS antenna) |
| Supports multi-band, multi-constellation GPS | yes (with external GPS antenna) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GSD Black Box Sonar Support | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible |
yes |
| GRID (Garmin Remote Input Device) compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support |
Electrical Features |
|
| Power Input | 10 – 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.0 A |
| Maximum current draw at 12 Vdc | 3.3 A |
| Maximum power usage at 10 Vdc | 40W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Traditional sonar (dual frequency/beam) | yes (with compatible black box sonar) |
| ClearVü | yes (with compatible black box sonar) |
| SideVü | yes (with compatible black box sonar) |
| Panoptix™ sonar | |
| LiveScope |

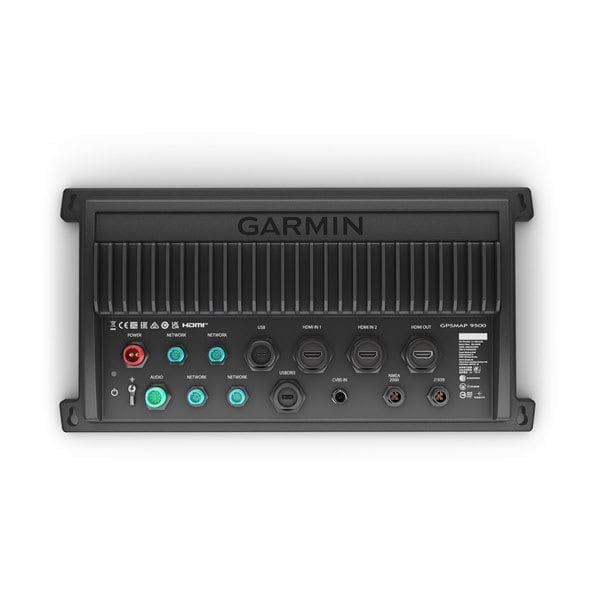

Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports |
1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports |
1 – BNC composite |
| Video output ports |
1 – HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 4 |
| USB ports | yes (2x USB-C) |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
| Audio output |
