General |
|
| Sizes | 0.75" |
|---|---|
| Continuous power handling (RMS) | 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 91.0 dB |
| Frequency response (+/- 3 dB) | 4 kHz-22 KHz |
| Nominal impedance | 8 Ω |
| Recommended amplifier power (RMS) | 15-100 W/Channel |
| Tweeter type | Silk Dome |
| Tweeter size | 0.75" (19 mm) |
| Warranty | 1 year |
Connections |
|
| Speaker connections | Spade connectors |
|---|

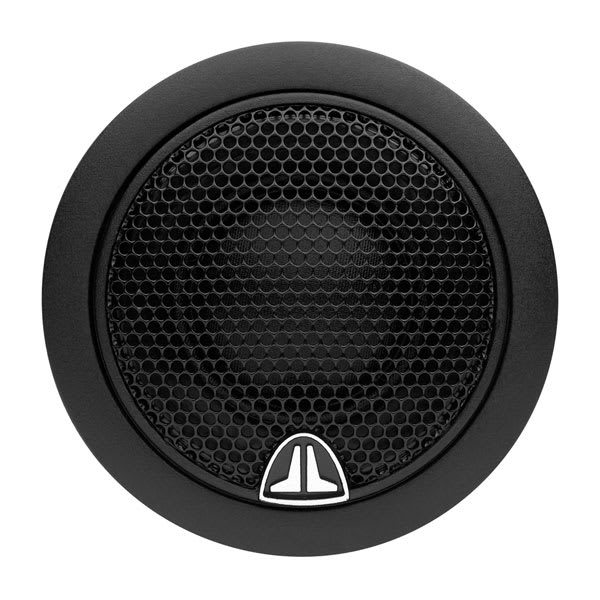

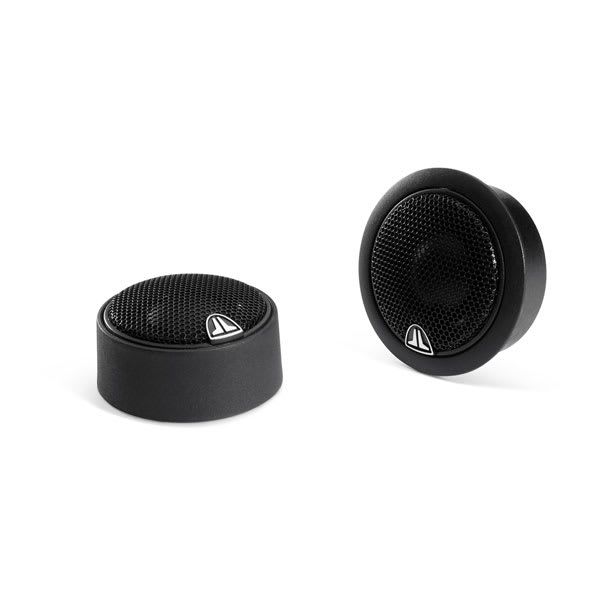

Tweeter Specifications |
|
| Flush mount fixture diameter | 1.87" (48 mm) |
|---|---|
| Surface mount fixture diameter | 1.69" (43 mm) |
| Flush mount mounting hole diameter | 1.625" (41 mm) |
| Flush mount mounting depth | 0.76" (19 mm) |
| Flush mount tweeter frontal protrusion | 0.29" (7 mm) |
| Surface mount tweeter frontal protrusion | 0.92" (23 mm) |
