General |
|
| Input channels | 8 |
|---|---|
| Output channels | FiX-82: 2 FiX-86: 6 (Front/Rear/Sub Output Pairs) |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 4.29" (109 mm) |
| Physical dimensions (Depth) | 6.14" (156 mm) |
| Weight |
2.58 lbs (1.17 kg) |
| Power supply type | Regulated DC-DC SMPS |
| Warranty | 2 years |
| Operating voltage | 10-16 VDC |
Audio |
|
| Signal-to-Noise Ratio @ 4 V (RMS) | 96 dB |
|---|---|
| THD+N @ Rated Power | 0.02% (20 Hz-20 kHz) |
| Input voltage range | 250 mV-30 V RMS |
| Minimum input voltage | 10 mV RMS |
| Input level setting | Fully automatic |

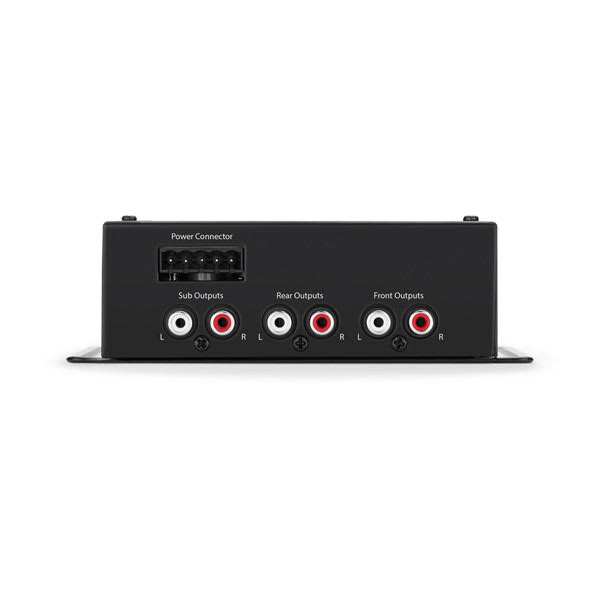

| Analog output | Unbalanced, stereo RCA jacks |

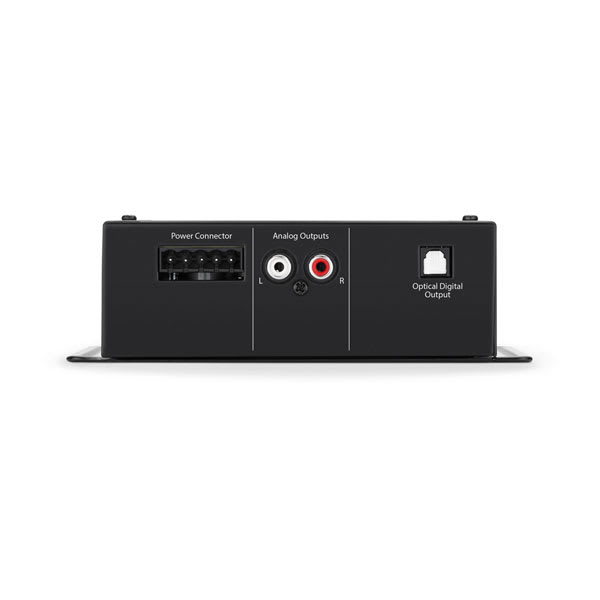

| Digital output | FiX-82: Optical (Toslink) output (S/PDIF) |
| Output impedence | 450 Ω |
| Current consumption (Standby) | <1.5 mA |
| Current consumption (Idle) | 0.7 A |
| Fuse rating | 1 A |
Signal Processing |
|
| Audio resolution | 24 bit/48 kHz |
|---|---|
| Number of EQ bands | 30 x 2 Channels |
| EQ resolution | 1/3 octave (25 Hz-20 kHz) |
| Remote level control | FiX-82: Optional (DRC-100) FiX-86: Optional (DRC-100 or DRC-200) |
| Remote level modes | Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control) |
