General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension |

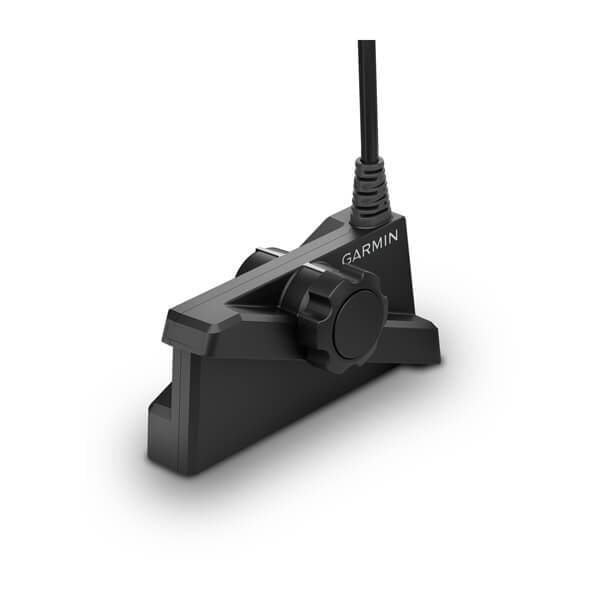

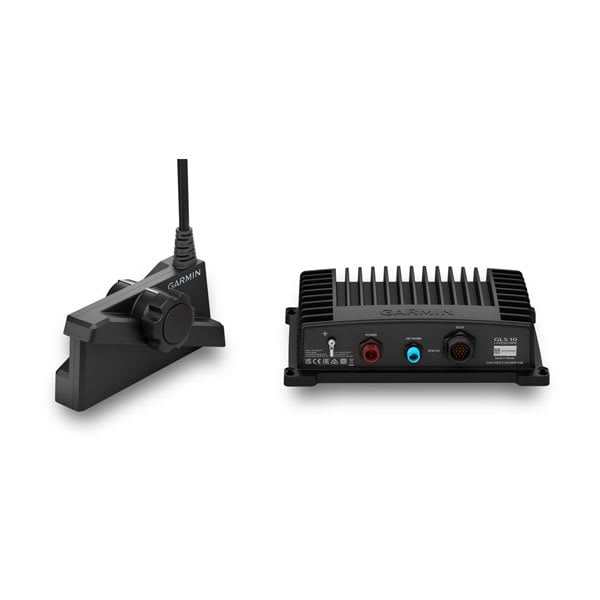

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
| Weight |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
|
Water rating |
IPX7 |
| Temperature range |
GLS 10 black box: Operating: -15 C to 70 C LiveScope LVS34-IF transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" (0.1 m) |
Sonar Features |
|

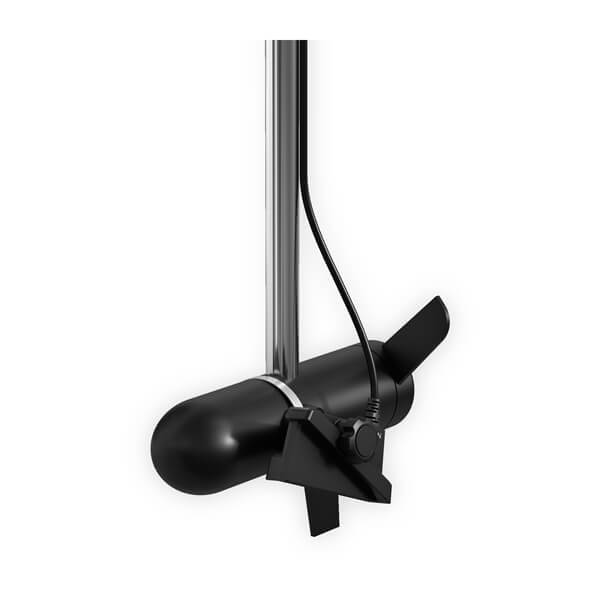

| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 14" |

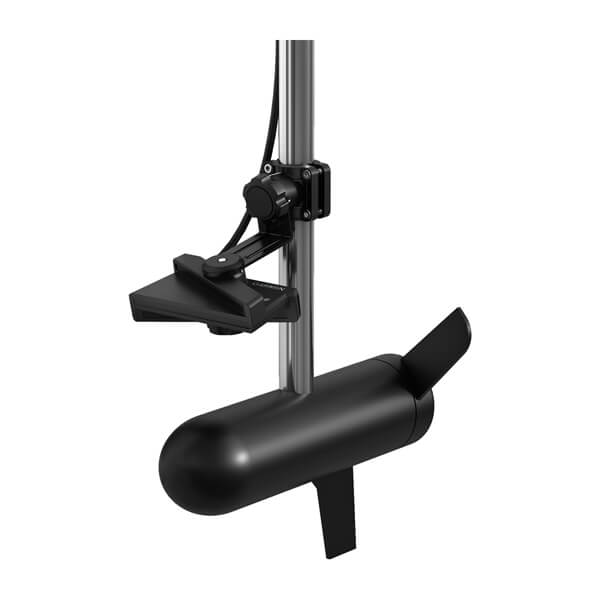

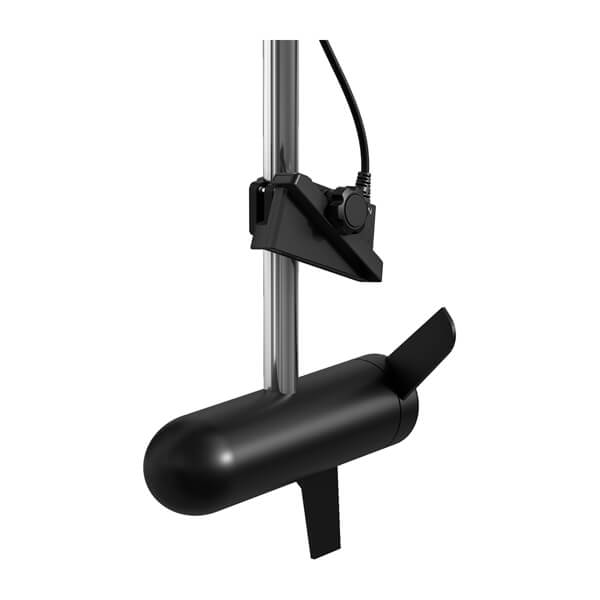

| Perspective Mode Mount Included |
Connections |
|
| Garmin Marine Network Ports |
1 (small connector) |
|---|
