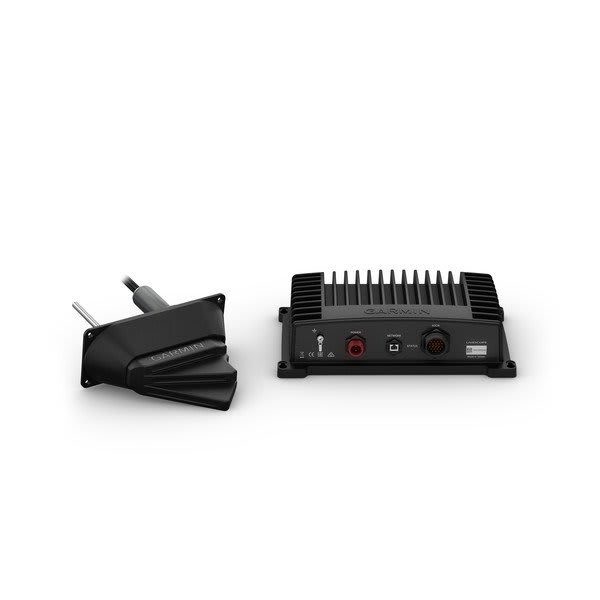

LiveScope™ System Thru-hull Mount
LiveScope™ System Thru-hull Mount
$2,099.99 Original price was: $2,099.99.$419.99Current price is: $419.99.

[wpforms id=”1190″ title=”true” description=”Request a call back”]

General
Dimension

GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm)

LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
Weight

GLS 10 sonar black box: 4.3 lbs (2.0 kg);

LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg)

LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)

Water rating

 IPX7
Temperature range

GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C

Electrical Features
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A

Sonar Features
Frequency 530 – 1,100 kHz
Transmit power 500 W
Maximum depth Forward: 200’ (61.0 m)

Connections
Garmin Marine Network Ports

1 (small connector)

Additional information

MODEL/COLOR
