General |
|
| Dimension | 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm) |
|---|---|
| Weight |
0.7 lbs (320 g) |
|
Water rating |
IPX7 |
| Display Type | QSVGA |
| Display Size | 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm) |
| Display resolution | 272 X 480 pixels |

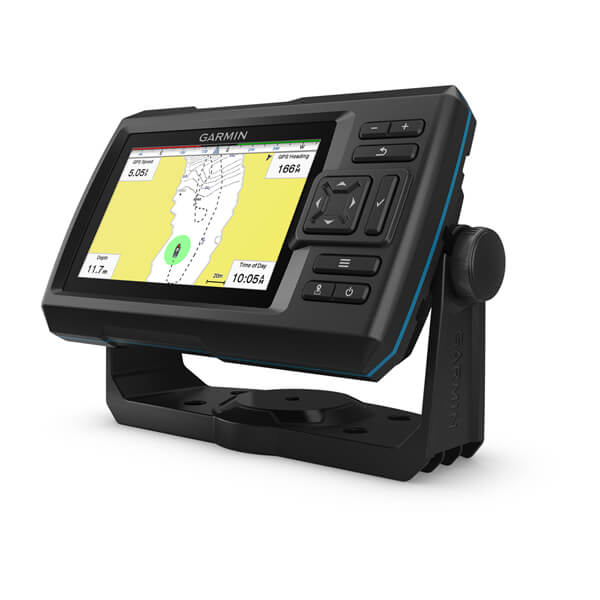

| Mounting Options | flush, tilt/swivel |
| Input | Keyed |
Maps & Memory |
|
| Waypoints/favorites/locations | 5000 |
|---|---|
| Track points | 50,000 |
| Tracks | 50 |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| Has built-in receiver | |
| Supports WAAS |
Optional Map Support |
|
| Garmin Quickdraw Contours |
|---|
Electrical Features |
|
| Power Input | 12 to 20 Vdc |
|---|---|
| Typical current draw | 0.40 A |
| Max current draw | 1.5 A |
| Power Consumption | 4.8 |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Traditional sonar (dual frequency/beam) | Built-in |
| ClearVü | |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
| Transmit power | 300 W (RMS) |
| Bottom Lock (shows return from the bottom up) | |
| Water Temperature Log |

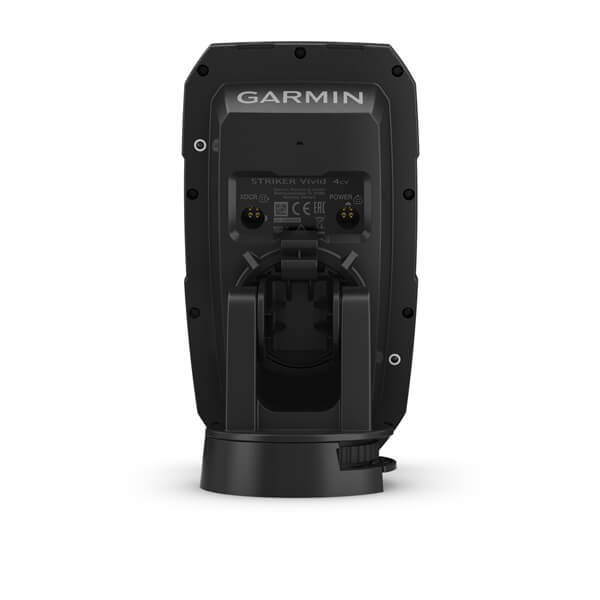

Connections |
|
| 4-pin transducer ports | 1 |
|---|
Fishfinder Features |
|
| Split-screen zoom | |
|---|---|
| Fish Symbol ID (helps identify fish targets) | |
| Autogain technology (minimizes clutter; maximizes targets) | |
| Adjustable depth line (measures depth of underwater objects) | |
| A-scope (real time display of fish passing through transducer beam) | |
| Water temperature sensor included | |
| Depth range shading |
