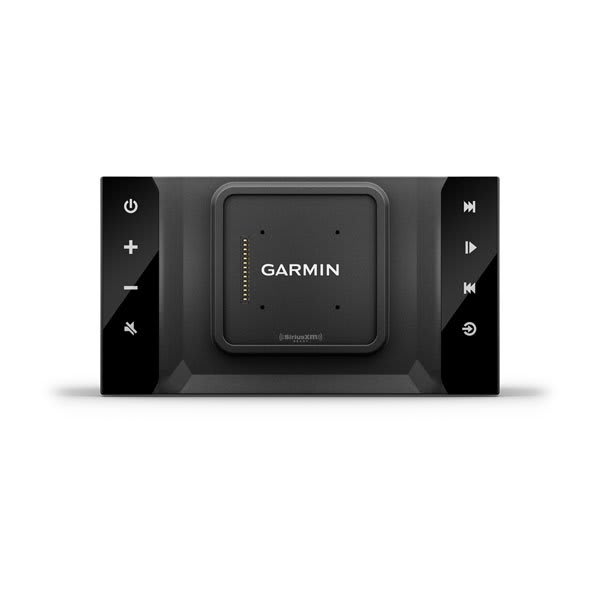

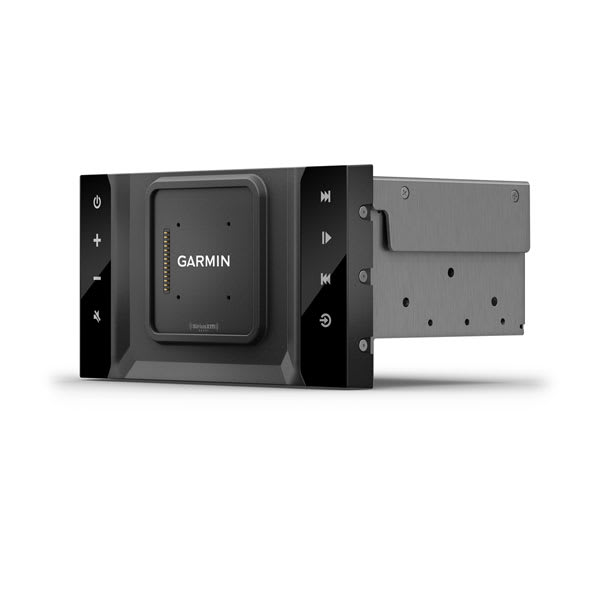

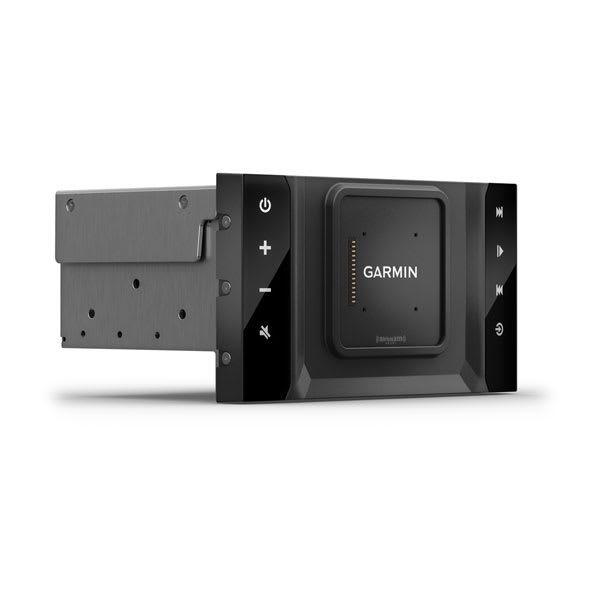

| Dock | Control h3s | Power, volume up/down, mute, fast forward, play/pause, rewind, source |
| Display sizes | Accomodates RV 2020 Series 7", 8" and 10" displays | |
| Fits DDIN cut-out | yes | |
| Stereo Features | Sources | AM/FM RDS / BLUETOOTH / Apple AirPlay 2 Wi-Fi audio streaming / USB audio / AUX x2 / UPnP / MTP / SiriusXM-ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ (available in Europe and Australia only) |
| Radio features | Dual tuner (RV 52), REG / Regional setting, Alternate Frequency (AF) setting | |
| SiriusXM | yes, with advanced features | |
| Number of presets | 15 presets on each: AM/FM/DAB/SiriusXM | |
| Multi-zone technology | yes, four independent audio zones are available for a customized listening experience | |
| Digital Signal Processing (DSP) | yes, using environmental information and customized Fusion speaker profiles, you can now achieve customized optimized audio | |
| Fusion-link control (wireless) | yes, via the Fusion-Link smartphone app | |
| PartyBus technology | yes (receive and broadcast – wired or wirelessly). Audio distribution network that allows the ability to switch between Party Mode and Personal Mode without disrupting the audio in other areas of the vehicle. | |
| BLUETOOTH wireless technology | BLUETOOTH-audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 BLUETOOTH protocols) (Up to 10 meters (30 feet) | |
| WiFi | yes | |
| ANT technology | yes (up to 3 meters (10 feet)) | |
| Internal amplifier | Class-D | |
| Peak power | 280W max | |
| Audio output | 4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+N | |
| Cameras | Connect up to 4 wired cameras and 1 with microphone input Compatible with Garmin BC™ 35 wireless backup camera |
|
| Compatible devices | • Garmin ConnectIQ watch models, ARX70, and ERX400 remotes for media controls • PartyBus networking with SRX400, RA770, and IN1501 • EmpirBus Connect 50 and DCM family modules via NMEA 2000 |
|
| Steering wheel control | Integrates with compatible vehicle chassis steering wheel controls | |
| Operating voltage | +10.8 – 16V dc | |
| Connections | Line out | 4 (1 x L + R per zone. Requires external amplification) |
| Auxiliary inputs | 2 x RCA inputs (AUX1 stereo input, AUX2 camera audio input only) | |
| Ethernet | One Ethernet port | |
| USB 2.0 port | 2 x USB 2.0 port (1 for phone charging/media playback on the dash; 1 reserved for Garmin accessory use) | |
| SiriusXM | One SiriusXM port (requires optional SiriusXM Connect vehicle tuner) | |
| AM/FM radio | One Motorola antenna connector port | |
| Speaker | 4 x speaker connections (2 zone amplified) | |
| RCA pre-out (left, right and subwoofer) | 2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness) | |
| CAN | 2 x CAN connections (for the vehicle and house/EmpirBus) | |
| Ignition | 2 ignition connections (powered from house batteries with dual on/off control from ignition and/or house switch; plus front panel on/sleep h3) | |
| Composite video | 4 x CVBS inputs (for backup, blindspot, and forward looking cameras) | |
| Digital I/O’s | 3 x camera selects, such that blind spot and back up can be triggered both automatically and manually by user via SW | |
| Compliance | Operating voltage | +10.8V – 16V DC |
| Regions | USA, Canada, Europe, EU DoC, Australia and New Zealand | |
| Certification | FCC, RSS (Canada),CE, USB, BLUETOOTH SIG, Apple Mfi (tbd), WiFi (tbd), RoHS |
